Current Loop Indicators
| TYPE | SMI-20W | TMI-20W |
| Photo |  |
 |

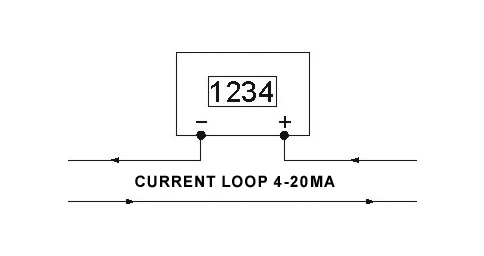

| Schematic |  |
|
| INPUT | ||
| Current | 3,6…22 mA | |
| Over current limit | 26 mA ± 2 mA | |
| Bit resolution | 16 | 10 |
| Voltage drop | ≤6,5 V | ≤6 V |
| OUTPUT | ||
| Display type | LCD | |
| Number of digits | 4 | |
| Digits height | 13 mm | 9 mm |
| Display range | – 999…9999 | |
| POWER SUPPLY | ||
| From current loop |  |
|
| OTHER | ||
| Programmable functions | |
|
| Engineering units | |
|
| Input signal filtration | |
|
| Basic accuracy (current measurement) | ≤0,05 % ± 1 digit | ≤0,1 % ± 2 digits |
| Working temperature | 0…60°C | |
| Protection (housing / teminals) | IP65 /–/– | IP65 / IP20 / IP10 |
| Mounting | wall | panel |
| CONFIG | ||
| Config | push buttons | push buttons / software |
| Config software | TMI-WIN | |
| Converter cable | PC-LMS | |
