Position transducers
| TYPE | LXY-P01 | LXY-P00 | LXY-P02 |
| Photo |  |
 |
 |

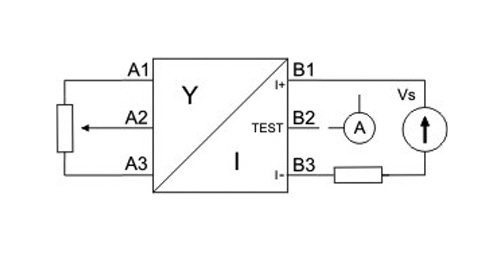

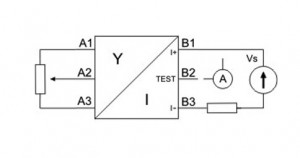

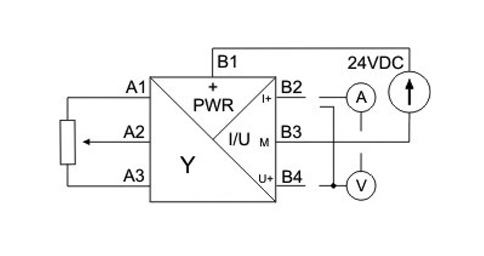

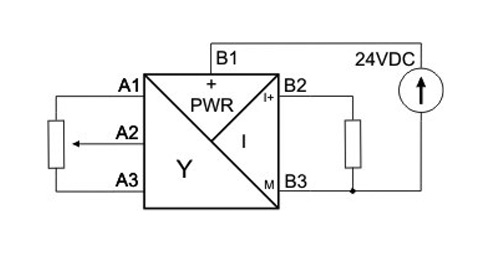

| Schematic |  |
 |
 |
| INPUT | |||
| Potentiometer | 100Ω…5kΩ | ||
| OUTPUT | |||
| 2-wire current loop | 4…20 mA | ||
| Current output | 0…20 mA | 4…20 mA | |
| Voltage output | 0…10 VDC | ||
| POWER SUPPLY | |||
| From current loop |  |
||
| Supply voltage range | 11…30 VDC | 24 VDC (20…30 VDC) |
|
| Power supply current | ≤30 mA | ||
| OTHER | |||
| Basic accuracy | ≤0,1% | ||
| Working temperature | 0…70 °C | ||
| Protection (housing / teminals) | IP20 / IP20 | ||
| Mounting | DIN rail | ||
| OPTIONS | |||
| One / two-channel | / |
/ |
/ |
| DOCUMENTS | |||
| Data sheet |  Download |
Download |
Download |
