Signal isolators
TYPE | LXA-U1U | LXA-X1X | LXA-U11 | LXA-X11 |
Photo | ||||

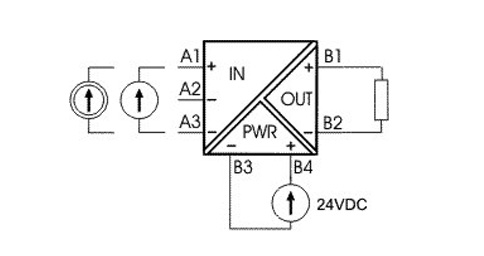

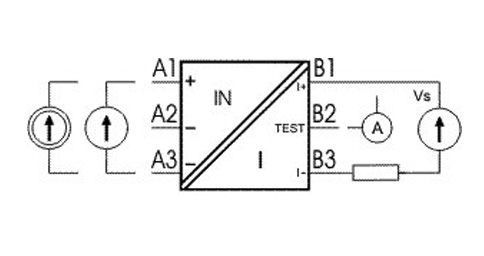

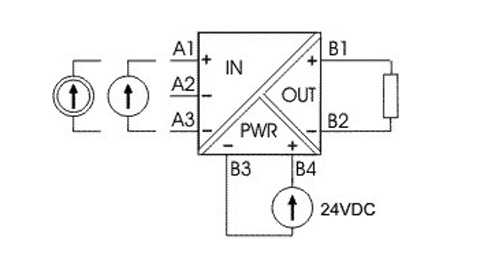

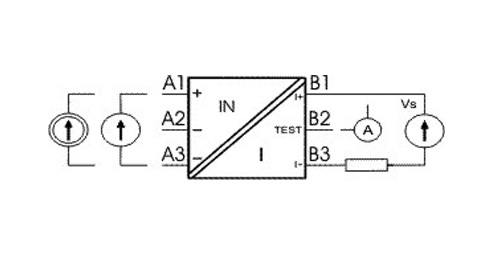

Schematic | ||||
INPUT | ||||
Current | 0…5 mA / 0…20 mA / 4…20 mA | |||
Voltage | 0…10 VDC | |||
Supplying input current loop | ||||
OUTPUT | ||||
2-wire current loop output | 4…20 mA | |||
Current output | 0…20 mA / 4…20 mA | |||
Voltage output | 0…10 VDC | |||
POWER SUPPLY | ||||
From current loop | ||||
Supply voltage range | 24 VDC (20…30 VDC) |
9…30 VDC | ||
Power supply current | ≤90 mA | |||
OTHER | ||||
Basic accuracy | ≤0,15% | ≤0,1% | ≤0,15% | ≤0,1% |
Galvanic isolation | input / output / power supply | input / output / power supply | input / output | input / output |
Galvanic isolation (test) | 1500 VAC | |||
Working temperature | 0…70°C | |||
Protection (housing / teminals) | IP20 / IP20 | |||
Mounting | DIN rail | |||
CONFIG | ||||
Config | DIP switch | according to the order | DIP switch | according to the order |
OPTIONS | ||||
One / two-channel | / — | / | / — | / |
Other input / output ranges (on request) | / | / | / — | / — |
DOCUMENTS | ||||
Data sheet | Download | Download | Download | Download |
