Weight transducers
| TYPE | LXM-91U |
| Photo |  |

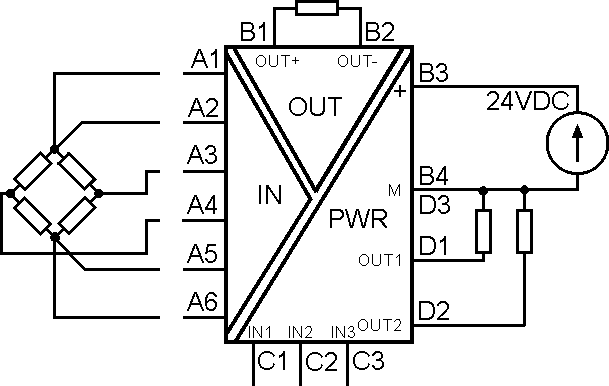

| Schematic |  |
| INPUT | |
| Number of cells | 1…8 |
| Bridge sensitivity | 0,5…8 mV/V |
| Circuitry | 4 or 6 |
| Cell power supply | 9 VAC / VDC |
| OUTPUT | |
| Current output | 0..20 mA / 4..20 mA |
| Voltage output | 0…10 V |
| COMPARATOR OUTPUTS | |
| Output type | binary OC-PNP |
| Load current | ≤0,6 A |
| POWER SUPPLY | |
| Supply voltage range | 24 VDC (20…30 VDC) |
| Power supply current | ≤150 mA |
| OTHER | |
| Basic accuracy | ≤0,06 % |
| Sensor break signalization | LED |
| Input signal filtration |  |
| Galvanic isolation | input / output / power supply |
| galvanic isolation (test) | 500 VAC |
| Working temperature | 0…50°C |
| Protection (housing / teminals) | IP20 / IP20 |
| Mounting | DIN rail |
| CONFIG | |
| Config | Software |
| Config software | LXMconfig |
| Converter cable | USB-LXT or RS232-LXT |
| USB driver | Virtual COM |
| OPTIONS | |
| One / two-channel | / — |
| Other input / output ranges (on request) | — / — |
| DOCUMENTS | |
| Data sheet |  Download |
